Product portfolio
ARK offers small diameter tubing in pre-cut lengths from stock or custom, stainless steel tubing can be made to order. Small diameter stainless steel tubes is used by companies across numerous industries including Aerospace, Automotive, Electronics, Oil and Ga, Fiber Optics, Renewable Energy, and Medical Device.

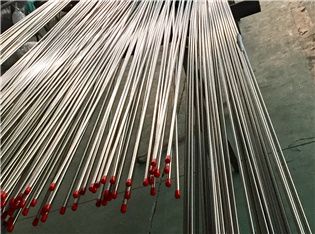

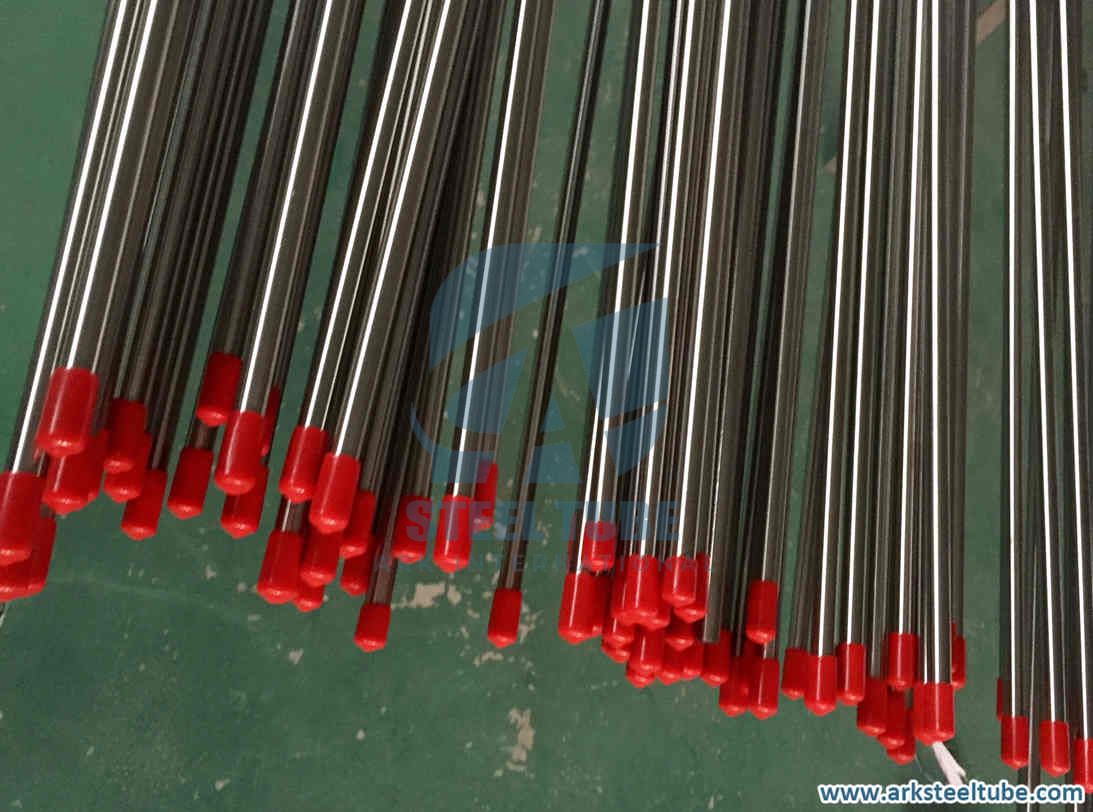

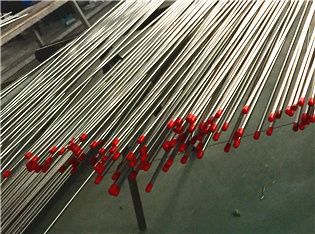

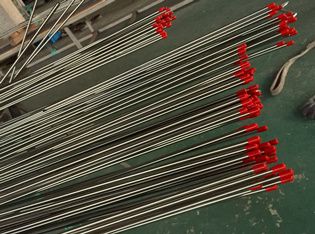

| ASTM A213/A312 TP316L Stainless Steel Capillary Tubing | ||||||||||
| Outside Diameter | 3.2-25.4mm | |||||||||
| Wall Thickness | 0.2-2.5mm | |||||||||
| Length | As customer's requirement; In coil or in straight. | |||||||||
| Standard | A213, A269,etc. | |||||||||
| Grade | TP304, TP304L, TP316, TP316L, TP321, TP247H, etc. | |||||||||
| Delivery Condition | Pickled, Polished, Bright Annealed | |||||||||
| Technique | Seamless/Welded | |||||||||
| Application | Automotive industry, Aircraft/Aerospace, Instrumentation & Electrical, Chemical Industry, etc. | |||||||||
| Marking | LOGO, Standard, Grade, Size, Heat Number. | |||||||||
| Package | Woven bag, wooden cases, or as per customer's requirement. | |||||||||
| Quality Requirement | Mill Test Certificate (EN 10204/3.1); Third Part Inspection is acceptable. | |||||||||
| Normal Size | |||||
| OD 3/16” | WT0.02” | 4.76x0.51mm | OD3/16” | WT0.028” | 4.76x0.71mm |
| OD3/16” | WT0.035” | 4.76x0.89mm | OD3/16” | WT0.049” | 4.76x1.24mm |
| OD0.24” | WT0.04” | 6x1mm | OD0.24” | WT0.06” | 6x1.5mm |
| OD1/4” | WT0.02” | 6.35x0.51mm | OD1/4” | WT0.028” | 6.35x0.71mm |
| OD1/4” | WT0.035” | 6.35x0.89mm | OD1/4” | WT0.049” | 6.35x1.24mm |
| OD1/4” | WT0.065” | 6.35x1.65mm | OD5/16” | WT0.028” | 7.94x0.71mm |
| OD5/16” | WT0.035” | 7.94x0.89mm | OD5/16” | WT0.049” | 7.94x1.24mm |
| OD5/16” | WT0.065” | 7.94x1.65mm | OD3/8” | WT0.028” | 9.53x0.71mm |
| OD3/8” | WT0.035” | 9.53x0.89mm | OD3/8” | WT0.049” | 9.53x1.24mm |
| OD3/8” | WT0.065” | 9.53x1.65mm | OD0.4” | WT0.04” | 10x1mm |
| OD0.4” | WT0.06” | 10x1.5mm | OD0.4” | WT0.079” | 10x2mm |
| OD0.47” | WT0.065” | 12x1mm | OD0.47” | WT0.06” | 12x1.5mm |
| OD1/2” | WT0.028” | 12.7x0.71mm | OD1/2” | WT0.035” | 12.7x0.89mm |
| OD1/2” | WT0.049” | 12.7x1.24mm | OD1/2” | WT0.065” | 12.7x1.65mm |
| OD0.55” | WT0.04” | 14x1mm | OD0.55” | WT0.06” | 14x1.5mm |
| OD5/8” | WT0.028” | 15.88x0.71mm | OD5/8” | WT0.035” | 15.88x0.89mm |
| OD5/8” | WT0.049” | 15.88x1.24mm | OD5/8” | WT0.065” | 15.88x1.65mm |
| OD5/8” | WT0.083” | 15.88x2.11mm | OD0.63” | WT0.065” | 16x1mm |
| OD0.63” | WT0.06” | 16x1.5mm | OD0.63” | WT0.079” | 16x2mm |
| OD3/4” | WT0.04” | 19.05x1mm | OD3/4” | WT0.049” | 19.05x1.24mm |
| OD3/4” | WT0.065” | 19.05x1.65mm | OD3/4” | WT0.083” | 19.05x2.11mm |
| OD1” | WT0.049” | 25.4x1.24mm | OD1” | WT0.0665” | 25.4x1.65mm |
| OD1” | WT0.083” | 25.4x2.11mm | OD1” | WT0.1” | 25.4x2.54mm |
