Product portfolio
ARK offer a range of products specifically meeting the demands and specifications required in the fabrication of shell and tube heat exchangers/boiler. Our heat exchanger tubes are used for the cooling, heating or re-heating of fluids, gases, or air in a wide range of industries, such as chemical processing, hydro carbon processing and oil refining, nuclear power generation and aerospace.
| ASTM A210 Gr A1/C Seamless Carbon Boiler Tube | |
| Outside Diameter | 12.7mm ~ 127mm |
| Wall Thickness | 0.5mm ~ 12.7mm |
| Length | Up to 25m |
| Standard | ASTM A106, A179, A192, A210, A213,A269, A333, A335, DIN17175, EN10216-2, JIS3461, etc. |
| Grade | TP304,TP304L,TP316, TP316L,T5, T9, T11, T22, etc. |
| Delivery Condition | Pickled, Polished, Bright Annealed |
| Technique | Seamless |
| Application | Heat-exchanger, Heater, Boiler, Condenser Equipment |
| Marking | LOGO, Standard, Grade, Size, Heat Number. |
| Package | Woven bag, wooden case, or as per customer's requirement. |
| Quality Requirement | Mill Test Certificate (EN 10204/3.1); Third Part Inspection is acceptable. |

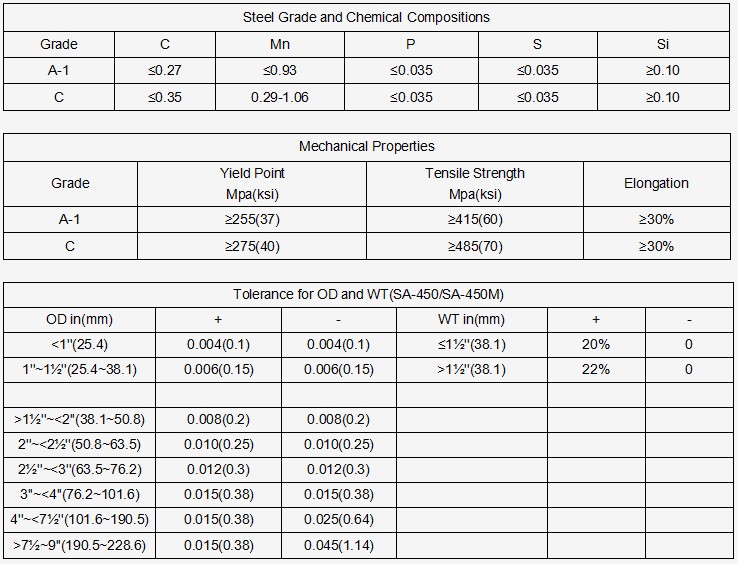

ASTM A210 Seamless Medium-Carbon Steel Boiler And Superheater Tubes
Applications: Boilers, Superheaters, Steam linepipes of boilers.
Surface Condition: Pickling or shot blasting, Passivated, Black Phosphating.

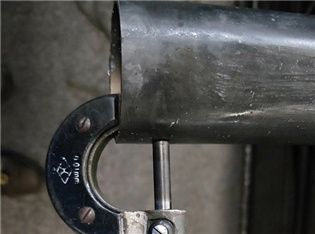

Tests and Inspection:
Flattening Test
Flaring Test
Hardness Test
Hydrostatic or Nondestructive Electric Test ( Eddy Current and Ultrasonic Testing)
